Description

Engine

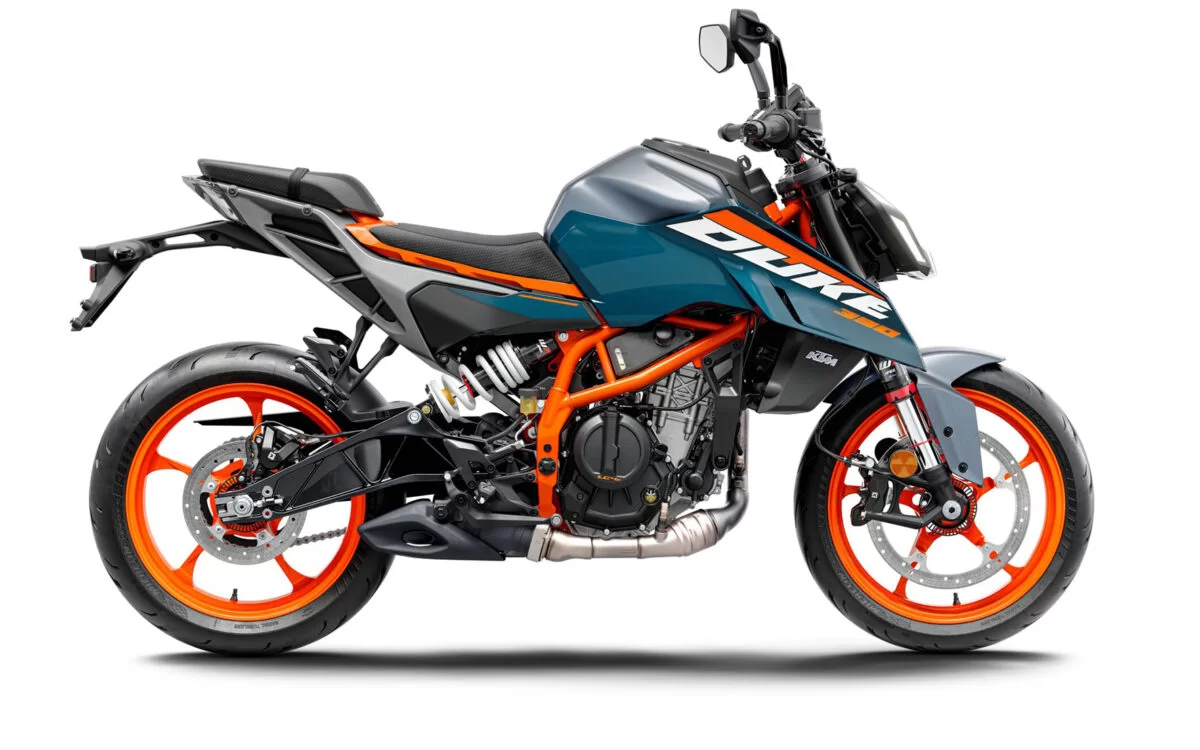

Parameter KTM 390 DUKE
Engine Type Single Cylinder, Liquid Cooled, DOHC, FI Engine
Engine Displacement 398.63 cc
Bore x Stroke 89 mm X 64 mm
Power (PS) 46 PS @ 8500 rpm
Power (kW) 33.8 kW @ 8500 rpm
Torque 39 Nm @ 6500 rpm
Fuel Injection Bosch Electronic Fuel Injection (EFI)
Lubrication Wet Sump, Forced
Cooling SYSTEM Liquid cooling with radiator
Compression Ratio 12.71:1
Front Suspension 5-click Compression & Rebound adjustable, Open Cartridge, WP APEX USD forks, 43mm diameter
Rear Suspension Adjustable WP APEX Monoshock, 5-step Rebound damping, 10-step preload adjustable
Frame Split-Trellis frame
Sub Frame Aluminum casted sub-frame
Front Brake TYPE 320 mm Disc with Radially mounted calliper
Rear Brake TYPE 240 mm Disc with Floating calliper
Fuel Tank Capacity 15 L
Ground Clearance 183 mm
Saddle Height 800 / 820 mm
Kerb Weight 168.3 kg
Rider Aids Motorcycle Traction Control (MTC)
Ride modes – Street & Rain
Track Screen
Launch Control
Cornering ABS
Ride-by-wire
Quickshifter+
SuperMoto ABS
Type-C charging port
Starter / Battery 12 V, 8 AH MF battery
Headlight TYPE Full Split LED Headlamp
Instrument cluster type
