Description

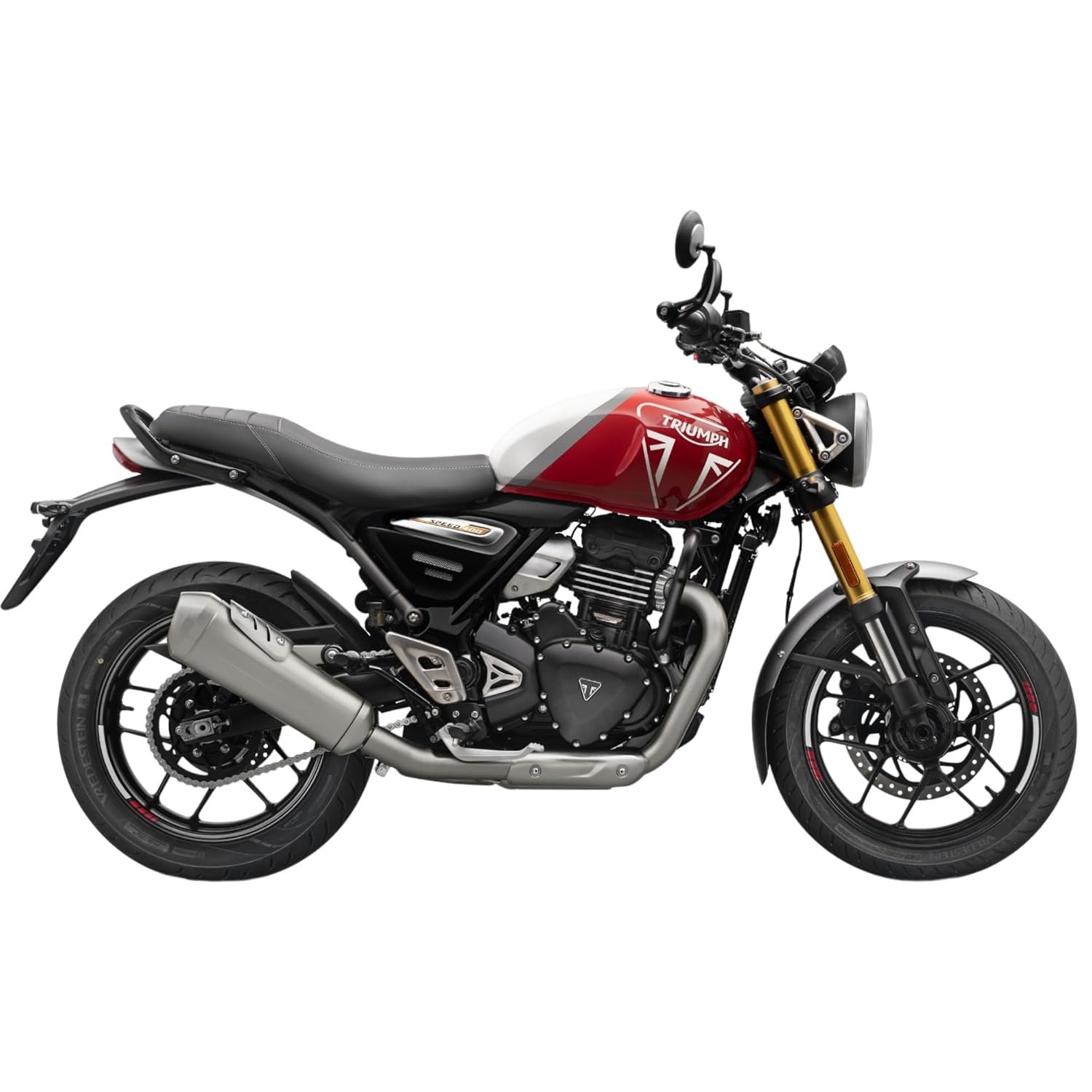

The Speed 400 brings Triumph’s unmistakable stripped back custom style, agile handling, responsive performance and category-defining build quality to a new class of rider.
| Type | Liquid-cooled, 4 valve, DOHC, single-cylinder |
|---|---|
| Capacity | 398.15 cc |
| Bore | 89.0 mm |
| Stroke | 64.0 mm |
| Compression | 12:1 |
| Max Power EC | 40 PS / 39.5 bhp (29.4 kW) @ 8,000 rpm |
| Max Torque EC | 37.5 Nm @ 6,500 rpm |
| System | Bosch electronic fuel injection with electronic throttle control |
| Exhaust | Stainless twin-skin header system with stainless steel silencer |
| Final Drive | X-ring chain |
| Clutch | Wet, multi-plate, slip & assist |
| Gearbox | 6 speed |
| Frame | Hybrid spine/perimeter, tubular steel, bolt-on rear subframe |
|---|---|
| Swingarm | Twin-sided, cast aluminium alloy |
| Front Wheel | Cast aluminium alloy 10 spoke, 17 x 3 in |
| Rear Wheel | Cast aluminium alloy 10 spoke, 17 x 4 in |
| Front Tyre | 110/80 R17 |
| Rear Tyre | 150/70 R17 |
| Front Suspension | 43mm upside down Big Piston forks. 140mm wheel travel |
| Rear Suspension | Gas monoshock RSU with external reservoir and pre-load adjustment. 120mm wheel travel |
| Front Brakes | 300mm fixed disc, four-piston radial caliper, ABS |
| Rear Brakes | 230mm fixed disc, floating caliper, ABS |
| Instrument Display and Functions | Analogue speedometer with integrated multi-function LCD screen |
| Width Handlebars | 829 mm |
|---|---|
| Height Without Mirror | 1096 mm |
| Seat Height | 803 mm |
| Wheelbase | 1386 mm |
| Rake | 25.1 º |
| Tank Capacity | 13 L |
| Wet Weight | 179 kg |
| CO2 Figures | 83.8 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
|---|
| Engine | Characterful and responsive TR-Series engine (Euro 5 compliant) |
|---|---|
| Gearbox | 6-speed gearbox with torque-assist clutch |
| Traction Control | Ride-by-wire throttle with switchable traction control |
| Ergonomics | Accessible 803mm seat height, slim waist and engaging ergonomics |
| Chassis | Lightweight frame with bolt-on rear subframe and cast aluminium swing-arm |
| Suspension | 43mm diameter upside-down forks and pre-load adjustable rear mono-shock |
| Brakes | Front 300mm disc and powerful radial caliper, Rear 230mm disc equipped with Dual-Channel ABS |
| Instruments | Analogue speedometer with integrated full-feature LCD display |
| Lighting | All-LED Headlamp with Daytime Running Light (DRL) and rear light signature |
| Service | Class-leading 10,000 mile / 16,000km service interval |
